Features
- 8 Slots with 250 mA of power per slot
- Full compatibility with API 500 Series and VPR-approved modules

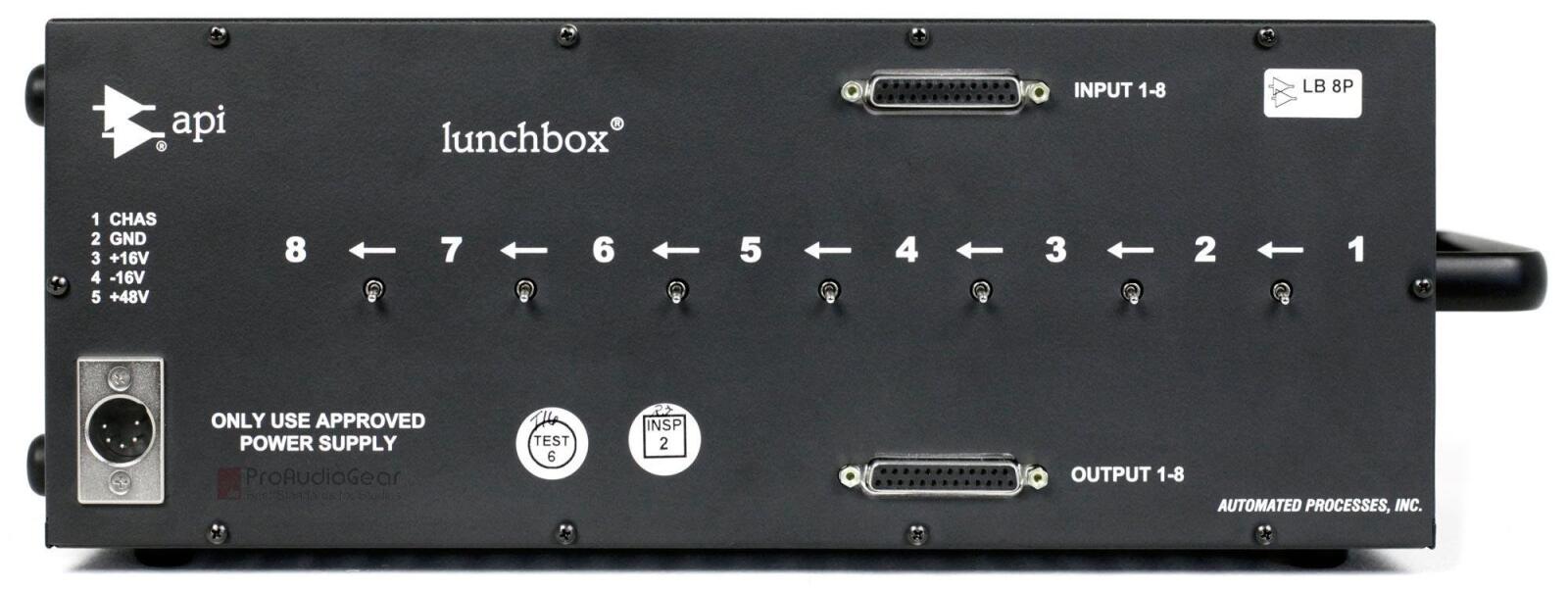

- DB25 connectivity on the rear panel
- Phantom Power
- Optional Rack Ears available for rack mounting
- toggle switches for channel linking
- Rubber feet & carrying handle for portability
- Rugged steel chassis
- Perfect for remote recording of Vocalist and Instruments

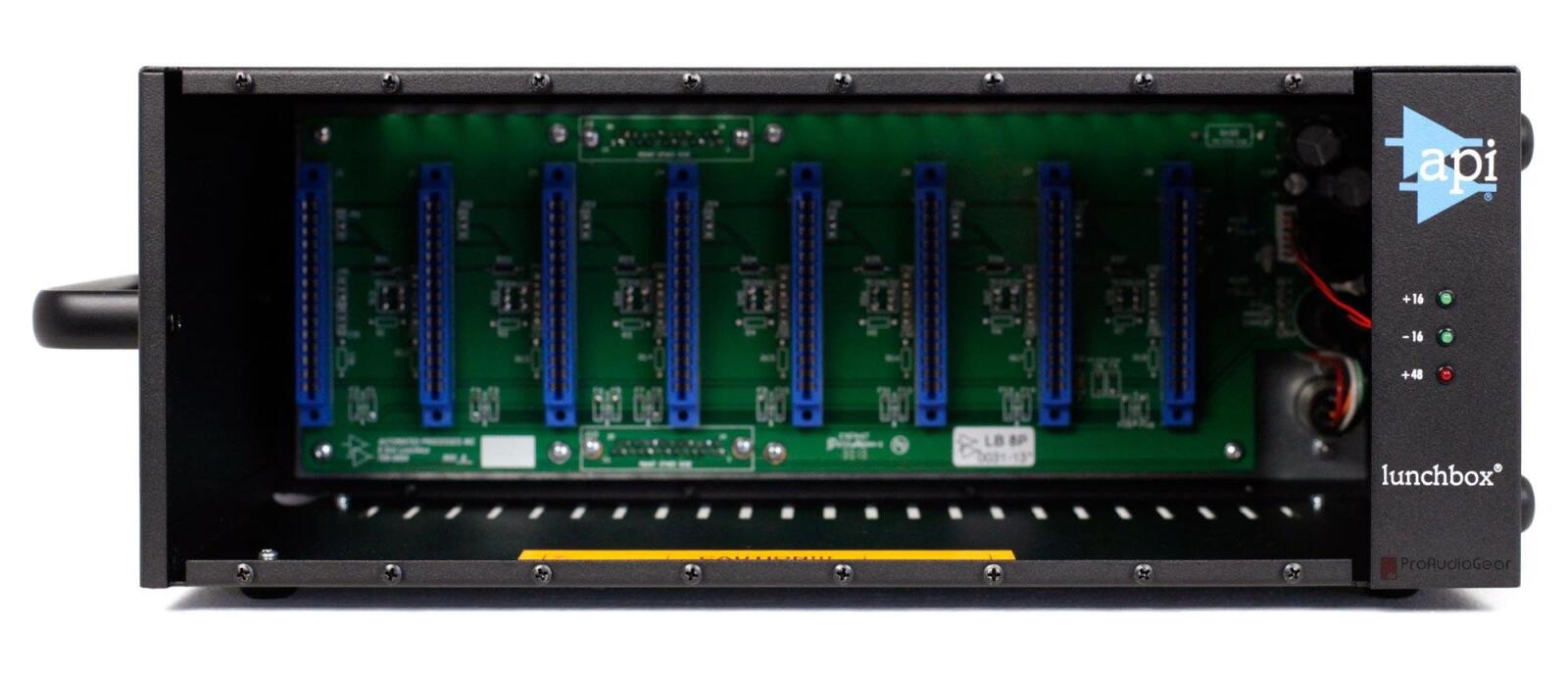

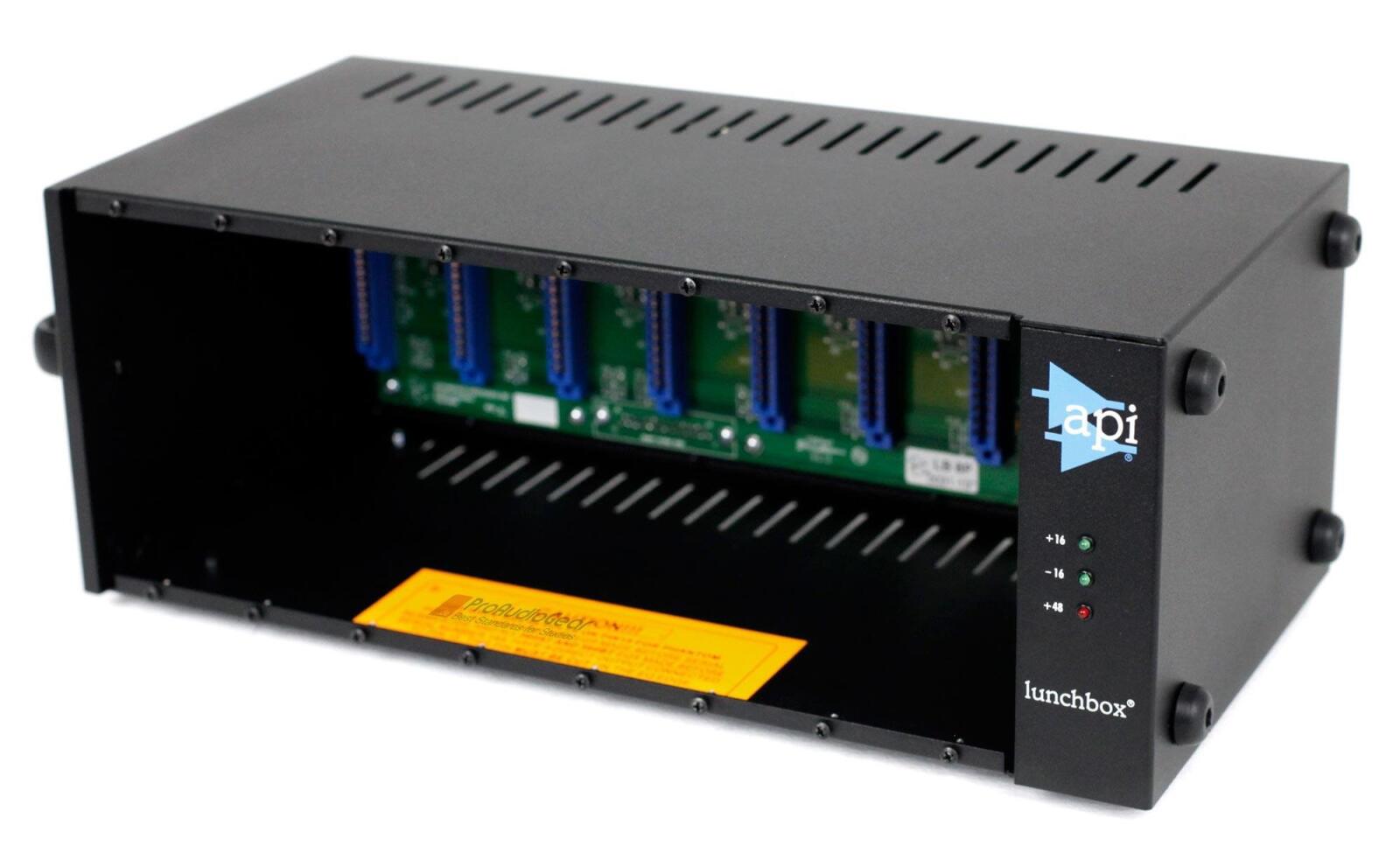

The new 8-slot lunchbox includes all of the features that have made the
6-slot lunchbox (500-6B) so well regarded in the industry, including DB-25
(D-Sub) connectors for easy I/O, universal power supply (100 or 250V, 47
to 63Hz), phantom power, and easy rack-mounting with optional rack-ear
kit. Built for robust performance, with new toggle switches for channel
linking.
The lunchbox gives an engineer the flexibility to bring along specialized
EQ effects to any situation: 550A, 550b or 560. The lunchbox is
self-powered. API makes several modules for the lunchbox, including the
512c Mic Preamplifier, the 525 Compressor, the 527 Compressor, the 550A
3-band EQ, the 550b 4-band EQ and the 560 Graphic EQ. Combinations of
these modules make perfect stereo recording packages (two 512cs and two
550bs) or vocalist's box (one 512c, two EQs and one 527).
Other uses for the versatile lunchbox include:
- Multi-track recording of acoustic and electronic audio sources
- Sound reinforcement systems and recording to multi-track formats
- Multiple facility projects where portability is a plus
- Broadcast and audio for video production
- Custom channel input strips
NOTE: The older 560A equalizer may use pin 15 for a "direct output" and
must be disabled on the 560A circuit board edge connector by cutting a
trace. This will eliminate 48 volts from damaging the 560A series
equalizers.
Herstellerinformationen
API Audio
An Abbreviated History of API
In 1968, Automated Processes, Inc. (API) was formed by engineers and music professionals with a vision. Today API is well known for many contributions to the field as well as a long-standing trademark warm sound. The 2520 amplifier, a unique amp invented by co-founder Saul Walker has been and will continue to be at the heart of all API discrete products. The 2520 continues to provide reliability and sonic purity unmatched by the competition. The early API consoles met the needs of music, commercial and broadcast industries.
API became the leading audio broadcast console manufacturer for radio and television networks and high profile stations. In addition, recording studios, large and small, began using API.....and receiving rave reviews from engineers and producers. There are over 700 API consoles across the nation and around the world, including the three major networks. Over forty years later, many of these consoles are still in daily use in some of the most prestigious recording and broadcast facilities in the world.
