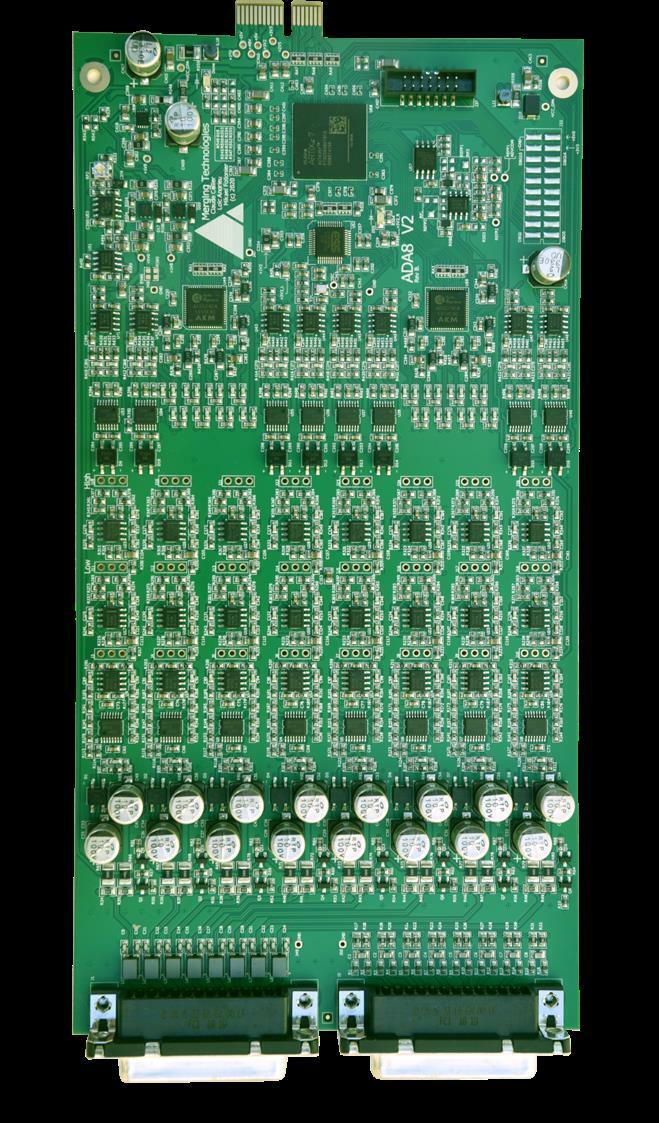

Merging Technologies - ADA8S Wandlerkarte für HAPI/HORUS (nicht für MKIII)

Artikelnummer 2020083752

Kategorie Computer Audio

2.420,00 €

inkl. 19% USt. ,

Auf Bestellung

Lieferzeit ca.: 9 - 10 Werktage (DE - Ausland abweichend)

Beschreibung

These remotely controlled Mic/Line Input and Output cards have broken a new barrier in terms of compactness as well as ultra-low power consumption without compromising on the audio quality. These cards work at sampling rates up to 192 kHz.
Using those combined 8 channel Mic/Line In and Line Out cards allow a Horus to be configured with up to 48 channels of Analog In/Out and a Hapi to be configured with up to 16 channels of Analog In/Out.

Features:

8 x exceptionally transparent, Swiss designed pre-amplifiers
Remote/Local switch to Line Level on a per channel basis
Completely accessible remotely for all parameter changes
Phantom Power/Phase/Low Cut/Impedance switchable per channel
Dynamic range of 120dB (A-weighted, typ) on the Line inputs
Auto-mute circuitry for “no-pop” power cycling
Digitally controlled output trims for line up procedures
Dynamic range of 123dB (A-weighted, typ.) on the Line outputs

Mic-Pre + ADC Section

Mic Pre Max Input (Pad On / Pad Off) +24 dBu / +13 dBu
Input Impedance (Differential, Software Switchable Per Channel) 2 kΩ / 6.8 kΩ
Frequency response +0/-0.3dB @ fs = 48 kHz 10 Hz – 22 kHz
Frequency response +0/-0.3dB @ fs = 96 kHz 10 Hz – 44 kHz
Frequency response +0/-0.3dB @ fs = 192 kHz 10 Hz – 85 kHz
Dynamic Range (A-weighted, typ.), ref +13 dBu 119.5 dB
Gain Range (software controlled) 0 dB to +66 dB
Gain Step/Precision 0.5 dB / ±0.2 dB
THD+N Pre + A/D (20 Hz - 20 kHz) @ -2 dBFS < -102 dB (0.0008 %)
Interchannel Crosstalk @ 1kHz < -125 dB
EIN @ >40 dB Gain (150Ω Source Impedance, A-weighted) < -128 dBu
Common Mode Rejection Rate (20 Hz – 20 kHz) > 60 dB (up to 0 dBFS)
Phantom Power (Software Switchable Per Channel) +48V
Phase Reverse (Software Switchable Per Channel) YES
Low Cut filter (Software Switchable Per Channel) -12 dB/octave, 80 Hz

Line Input Section

Max Line Input for 0 dBFS +24 dBu
Input Impedance (Differential) 13.6 kΩ
Dynamic Range (A-weighted, typ), ref +24 dBu 120 dB
THD+N Line+A/D (20 Hz - 20 kHz) @ -2 dBFS < -102 dB (0.0008%)
Interchannel Crosstalk @ 1kHz, typ. -125 dB
Sensitivity Range for 0 dBFS (software controlled) -42 dBu to +24 dBu
Gain Step/Precision 0.5 dB / ±0.2 dB
Common Mode Rejection Rate (20 Hz – 20 kHz) > 60 dB (up to 0 dBFS)
Connector Pinout (DB-25 female) DB-25 / AES59 (Tascam Ana.)

Line Output Section

Max Output level software switchable for 0 dBFS +24 dBu / +18 dBu +0/-0.5 dB
Frequency response +0/-0.3dB @ fs = 48 kHz 6 Hz – 22 kHz
Frequency response +0/-3dB @ fs = 96 kHz 6 Hz – 44 kHz
Frequency response +0/-3dB @ fs = 192 kHz 6 Hz – 88 kHz
Output Impedance (Differential) < 100 Ω
Dynamic Range (A-weighted, typ.) 123 dB
THD+N (1 kHz) @ 0dBFS < -108 dB (0.0004 %)
Interchannel Crosstalk @ 1kHz < -135 dB
Connector Pinout DB-25 / AES59 (Tascam Ana.)

Latencies

Input latency at 44.1/48kHz 16 samples
Input latency at 88.2/96kHz 16 samples
Input latency at 176.4/192kHz 13 samples
Output latency at 44.1/48kHz 9* samples
Output latency at 88.2/96kHz 9* samples
Output latency at 176.4/192kHz 9* samples

* Filter setting
- Slow Roll Off Filter option = 9 Samples
- Sharp Roll Off Filter option = 38 Samples
