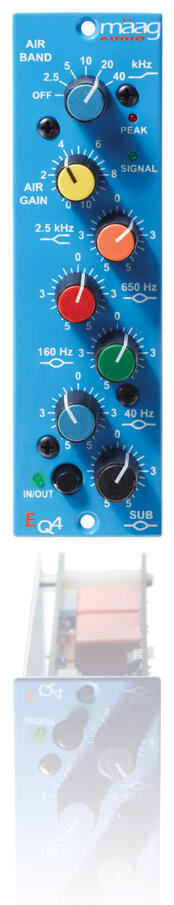

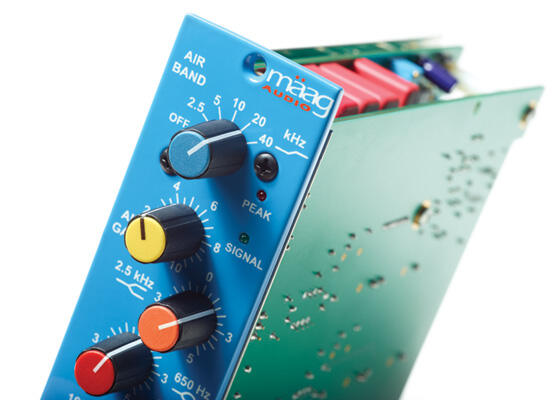

Maag Audio EQ4-500 - 500 Series Modul

The Maag Audio EQ4 (R) (500 Series) is a one channel 6 band equalizer with AIR BAND (R) (shelf boost from 2.5 to 40kHz), compatible with the API 500-6B lunchbox (R) and 500VPR rack systems. Following its EQ3 and EQ3-D predecessors, the EQ4 (R) provides unparalleled transparency and top end presence while maintaining the true natural sound behind the mix. EQ adjustments are obtained with minimal phase shift and detent controls allow for easy recallable settings.


Specifications Value

• Frequency Response -2 dB points, 10Hz & 75kHz
• Nominal Input Impedance XLR) 48 K Ohms, balanced
• Nominal Output Impedance (XLR) 50 Ohms, balanced
• Headroom +27 dBu
• THD + Noise < 0.005%

*Specifications subject to change without notice.
