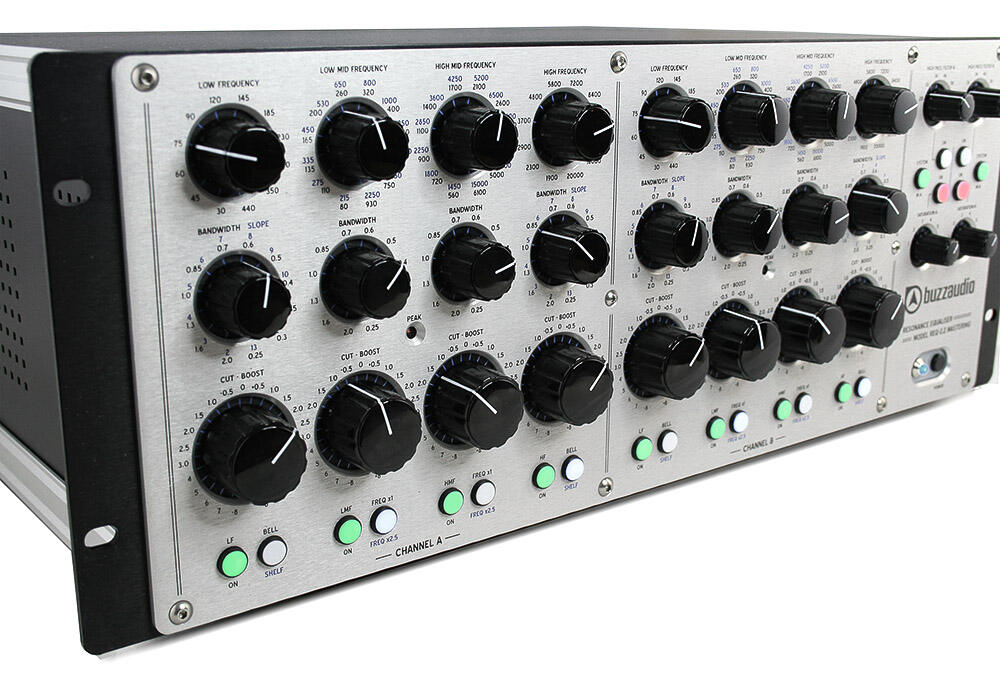

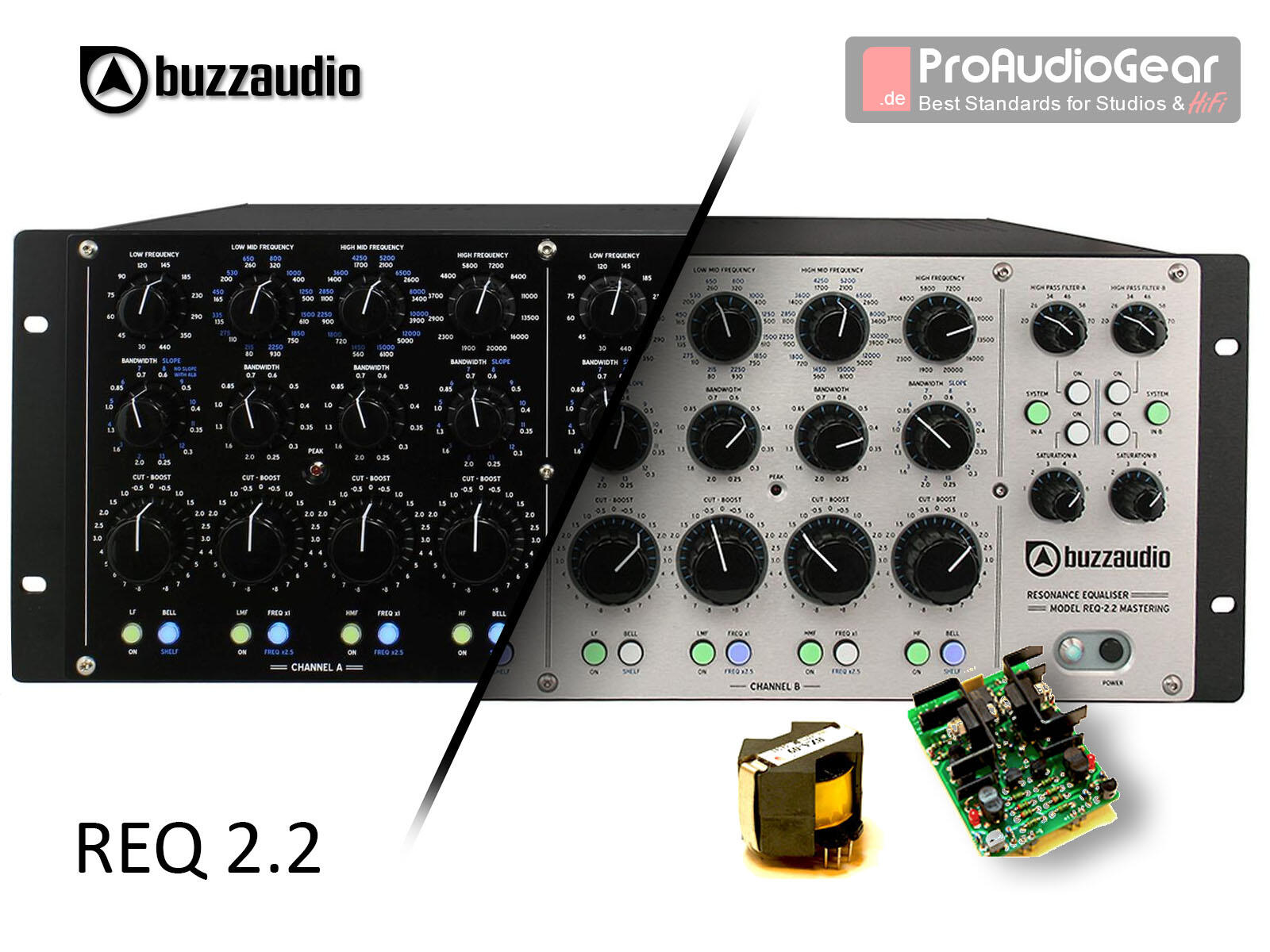

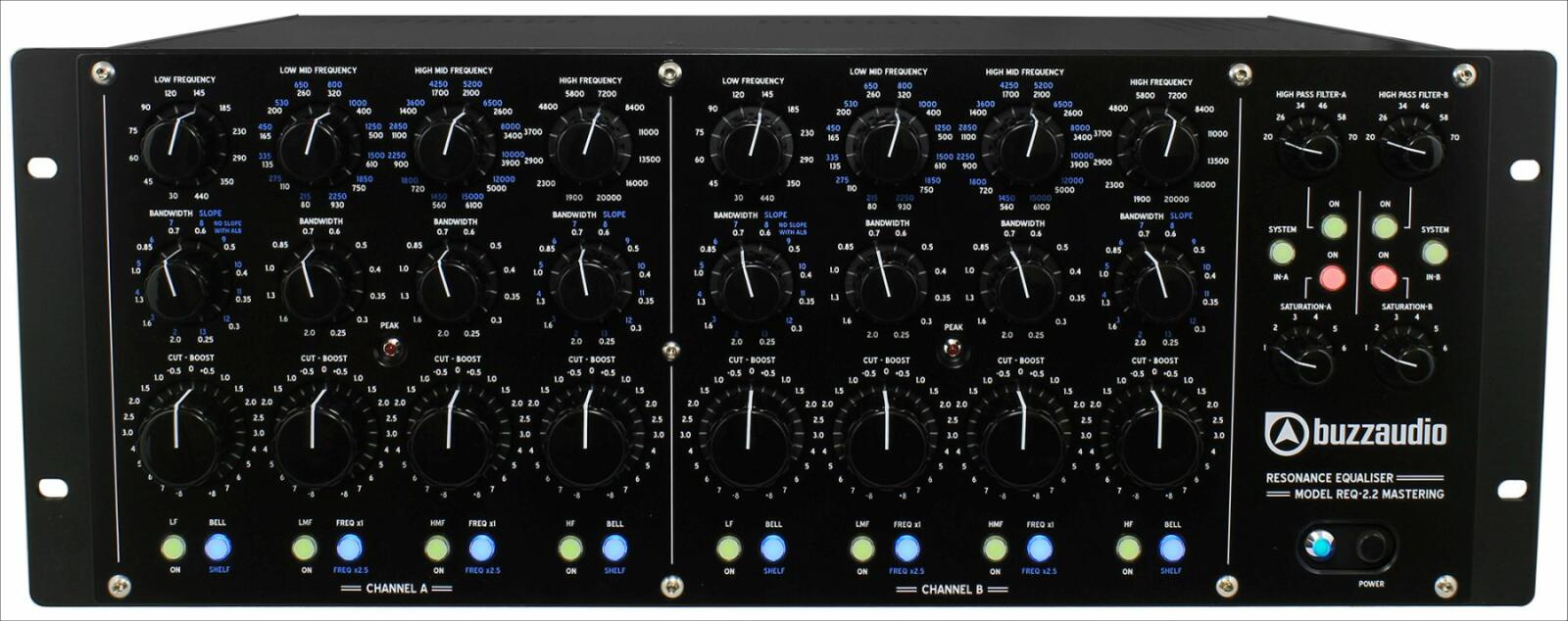

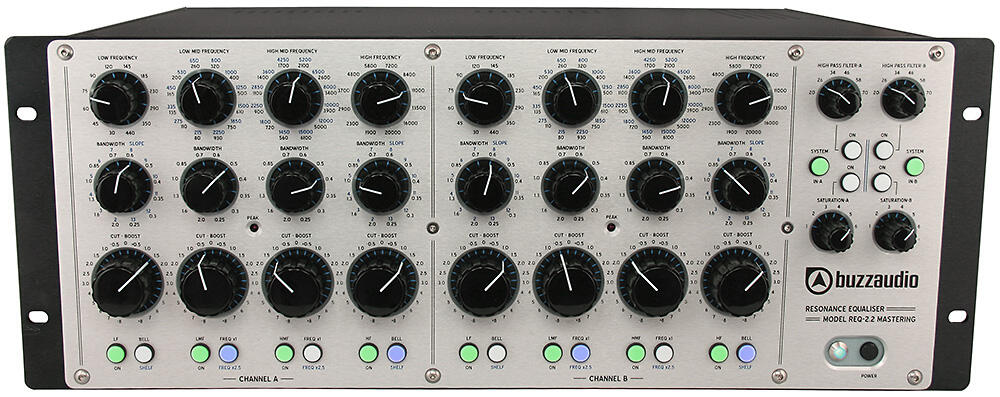

(Bitte beachten: Die Fotos zeigen die Mastering Version des Equalizers. Dies ist die Recording-Version, sie hat 15db boost/cut und nicht das "Mastering Edition" Logo auf der Frontplatte, sowie keine gerasterten ELMA-Stufenschalter)
the resonance factor
The REQ-2.2 equalizer utilises parallel resonant circuits in a clever configuration whereby the bandwidth (Q) of the circuit can be adjusted like an active filter, but without any complex relay switching. The inductor/capacitor resonant "tank" eq circuit runs at a low internal signal level which avoids any inductor saturation effects. The overall result is the sound of real choke based filters with a big open sound, but without the limitation of only a few - or no bandwidth selections as found on traditional choke eq's.
audio path quality
As you would expect, the REQ uses our BE40 True Class A circuits developed for the MA-2.2 microphone amplifier for the best possible audio performance that mastering engineers desire. But sometimes you might need a bit more color, so we have included a saturation section that introduces measured amounts of low frequency harmonic distortion via a steel audio transformer driven by a single ended tansistor amplifier. The High Pass Filter is placed in the beginning of the eq chain and the Low Band eq section is placed last in the chain. This layout produces the best overall equalizer coherency.

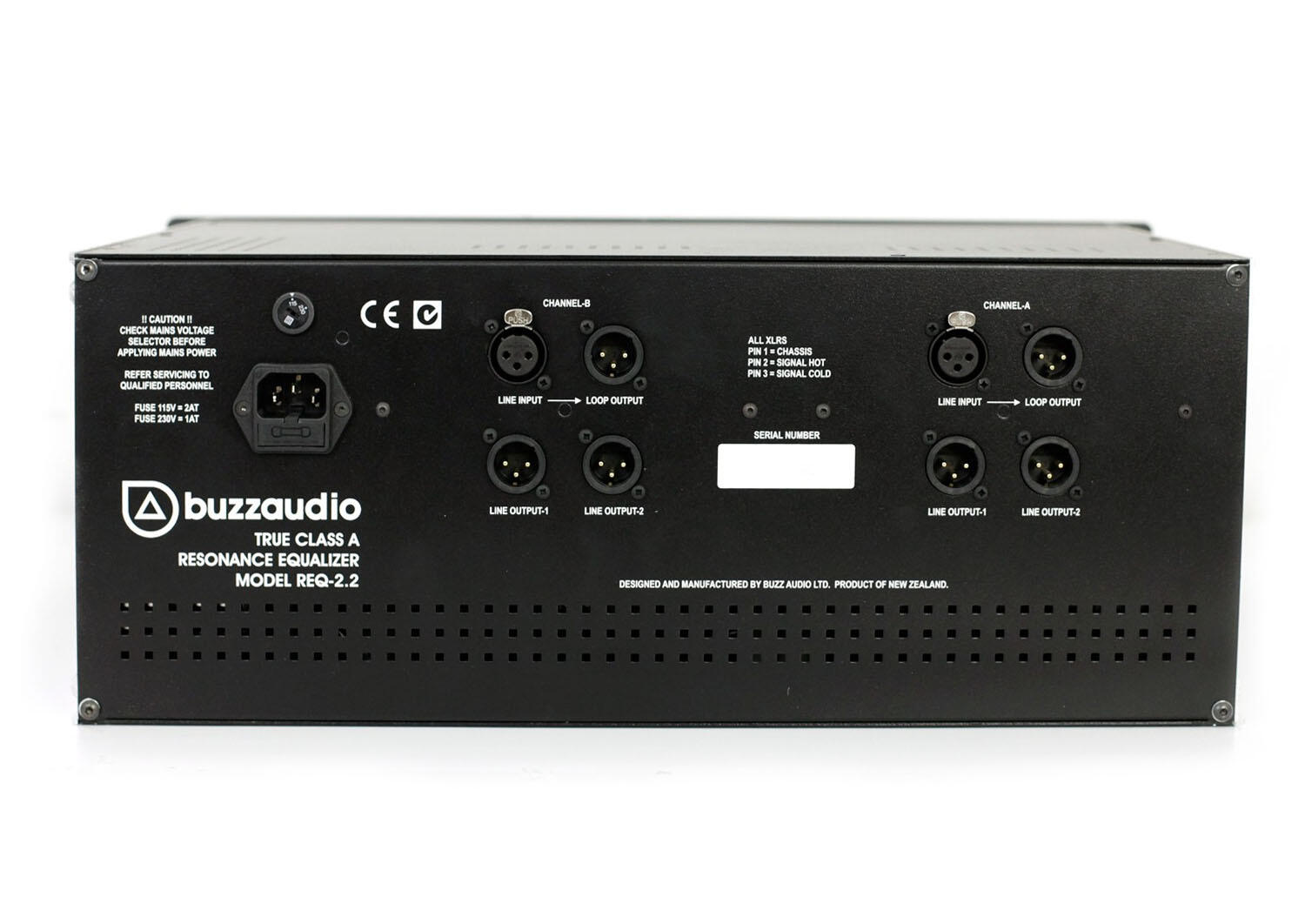

The large knobs and positive feel of the switching make the REQ a pleasure to operate and everything is visually clear when mounted into a console. In total there are 72 frequency choices per channel with overlapping selections across the four bands so you can always find the centre frequency you are looking for. A looping line XLR input and two parallel XLR outputs provide flexible connection options in the mastering control room. Finally, the brushed aluminium low glare rustic silver finish and retro Elma knobs give the REQ an impressive look in your rack!
controls and functions
mastering equalizerEach eq band has a 12 position switch to select the Frequency and another that selects the Bandwidth of the bell shape curve (Q) which is adjustable from 1/3 octave to 2 octaves wide. On the High and Low bands, the Bandwidth control reverts to shelf Slope control when Shelf mode is selected via the push button switch (not with the Active Low Band option). The Low and High Mid bands frequency range is changed to alternative selections when the Freq x2.5 mode is selected. Each band also has an in/out switch. The mastering version Boost/Cut control is a 23 postion Elma switch with a range of +/-8dB. The recording version is fitted with a Alps center detent pot with a range of +/- 15dB.

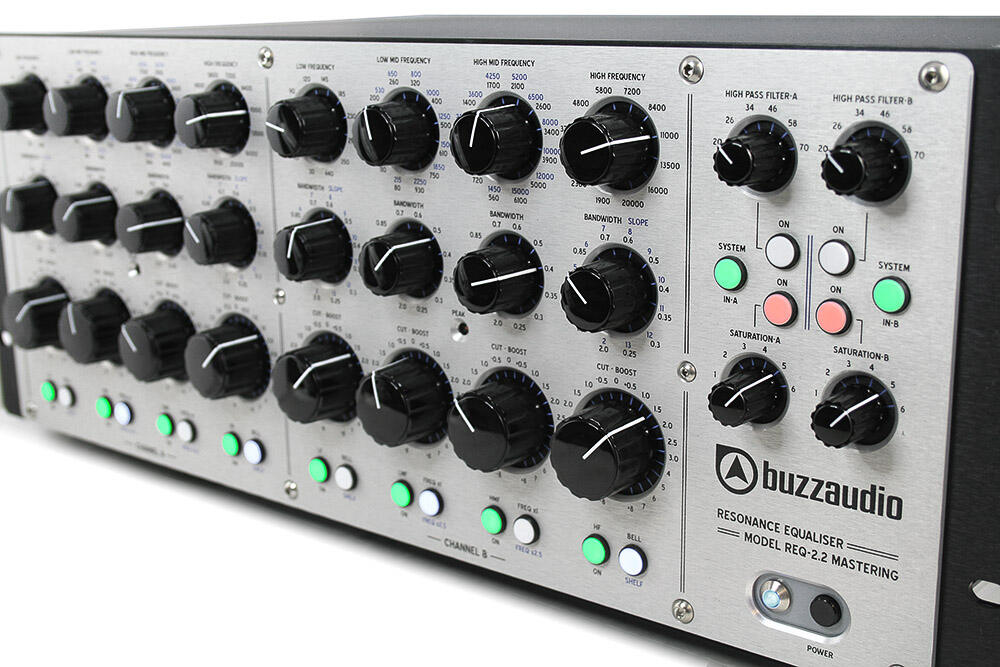

On the right side of the front panel are the High Pass Filter and Saturation controls with their own in/out switches. The overall System in/out controls and the power switch complete the picture. The channel A and channel B push button switches in this section can be grouped by holding down any switch for 5 seconds. This means for stereo work you only need to push either the channel A or B switch to change both channels simultaneously. (This feature only applies to units with serial number Q1110 and up).
mastering equalizerThe REQ equalizer is available in a mastering or recording version with different boost/cut ranges as noted above. The High Pass Filter section of the mastering version has a softer slope (12dB/oct) compared to the recording version (18dB/oct) and the cutoff frequencies are more applicable to the mastering process.
We are now offering an option for the Low Band section of the REQ. This option replaces the Choke based eq filter with an Active filter which provides a "tighter" bass sound. This option has come about from requests from some users who work with modern music styles in mastering. The only operational difference between the Active and Choke filters is that in Shelf mode, the Bandwidth control does not work as a slope control and is disabled.
Ordering model numbers
- Recording version with choke filter low band - REQ-2.2
- Recording version with active filter low band - REQ-2.2A
- Mastering version with choke filter low band - REQ-2.2ME
- Mastering version with active filter low band - REQ-2.2MEA
The Buzz Audio REQ-2.2 is a unique sounding equalizer and is the perfect complement to the other equalizers in my rack. It's smooth and natural top end, and rich sounding low end make it the perfect antidote for the harshness I frequently find in mixes done "in the box". Perhaps the most interesting aspect of the REQ-2.2 is it's ability to carve out excessive low end while still keeping the dynamics intact. As many projects are now mixed in less than perfect monitoring situations, I frequently find an overabundance of bottom end which has not been heard in the mix environment. The low end shelving on the REQ 2.2 removes the offending frequencies while leaving the warmth of the mid-range intact. I've really enjoyed this addition to my arsenal.
[Greg is a mastering engineer at Sterling Sound]
