Weiss EQ1-DYN - 7 Band Equalizer

EQ1-DYN, the EQ1-MK2 with four dynamic bands

The EQ1 is available in four different configurations. All of them work at 24/96. The basic model is the EQ1-MK2 which is offered here, the linear phase model is the EQ1-LP, the dynamic model the EQ1-DYN. The EQ1-DYN-LP incorporates both LP and DYN versions in one unit. The mode of operation (LP or DYN) can be chosen after power-up. All models are user-upgradeable to any other version.

The EQ1-DYN

For the first time, Weiss Engineering brings an exciting new feature to its EQ palette: dynamic control in the frequency domain.
You adjust the EQ to a nominal setting. The input signal is then analyzed to determine exactly how much equalization need actually be applied. If the signal is already loud in a certain band, it is not boosted even more. Or, alternatively, if you want to attenuate certain frequencies, these are only attenuated when they exceed a certain level.

Multi-band dynamic? Or dynamic multi-band?

The EQ1-DYN features four freely adjustable dynamic bands, and additionally three linear bands per channel. Setting up the dynamic bands is as easy as setting a linear band. There is just one additional parameter to be adjusted by the user, the threshold control. This makes multi-band dynamic control as easy and as versatile as adjusting a parametric equalizer.

Here are the main features common to all four models:

Seven identical parametric bands. All seven bands cover the entire audio frequency range. Each band has Boost/Cut, Frequency and Q/Slope knobs. Each band operates in any of the following modes: High shelving, low shelving, peaking, high cut, low cut, bypass.
One parameter per knob operation. Seven sets of controls for seven operating bands. Knobs are touch sensitive. LCD display shows detailed parameters of the touched band.
Large, backlit Liquid Crystal Display which shows the overall frequency response (calculated in real time) and the detailed parameter values in dB, Hz and Q.
A/B compare memory, 128 snapshot bank with two additional banks for back-up.

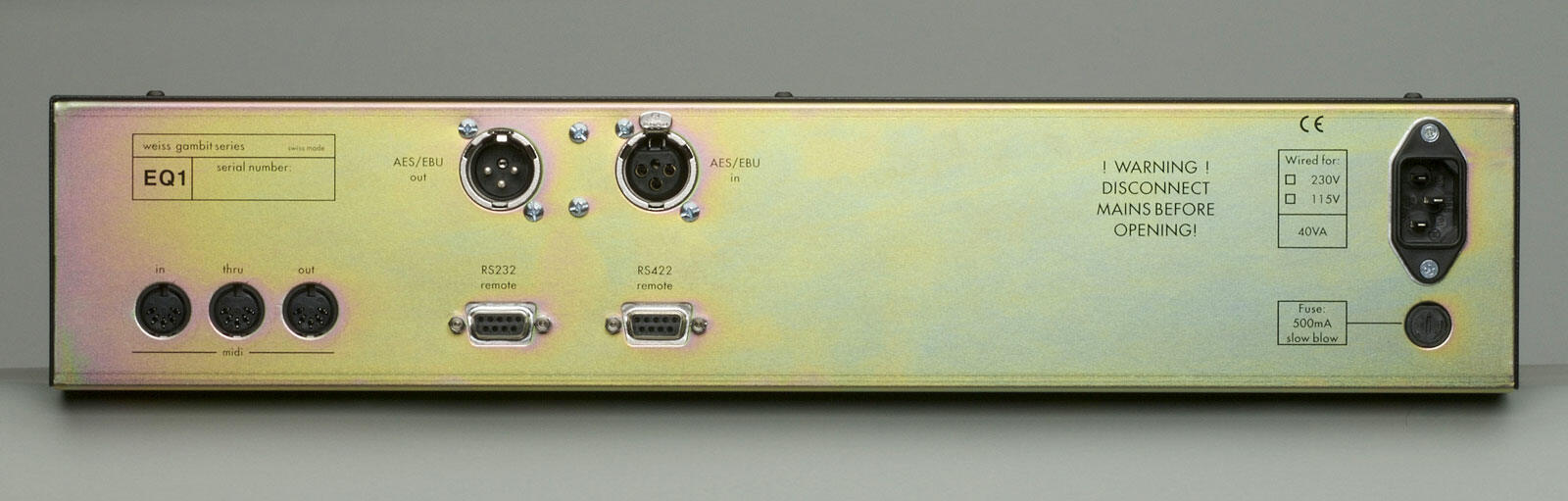

Digital input / output in AES/EBU format on XLR connectors.
Dithering to 16, 20 or 24 bits. POW-R dithering in the LP, DYN and DYN-LP models.
128 steps for boost/cut, frequency and Q parameters.
Variable slope shelving filters.
Very high Q (up to 650) for notching out offending frequencies.
M/S mode for independent equalization of M and S channels. M/S encoder / decoder can be configured separately.
Peak meter, over indicators.
MIDI control for each parameter.
Bypass, overall gain, CH1/2 independent or ganged.
