The PMC6-2 provides main-monitor scale, depth, and dynamics, and allows mix decisions to be made quickly, with absolute certainty and without fatigue.

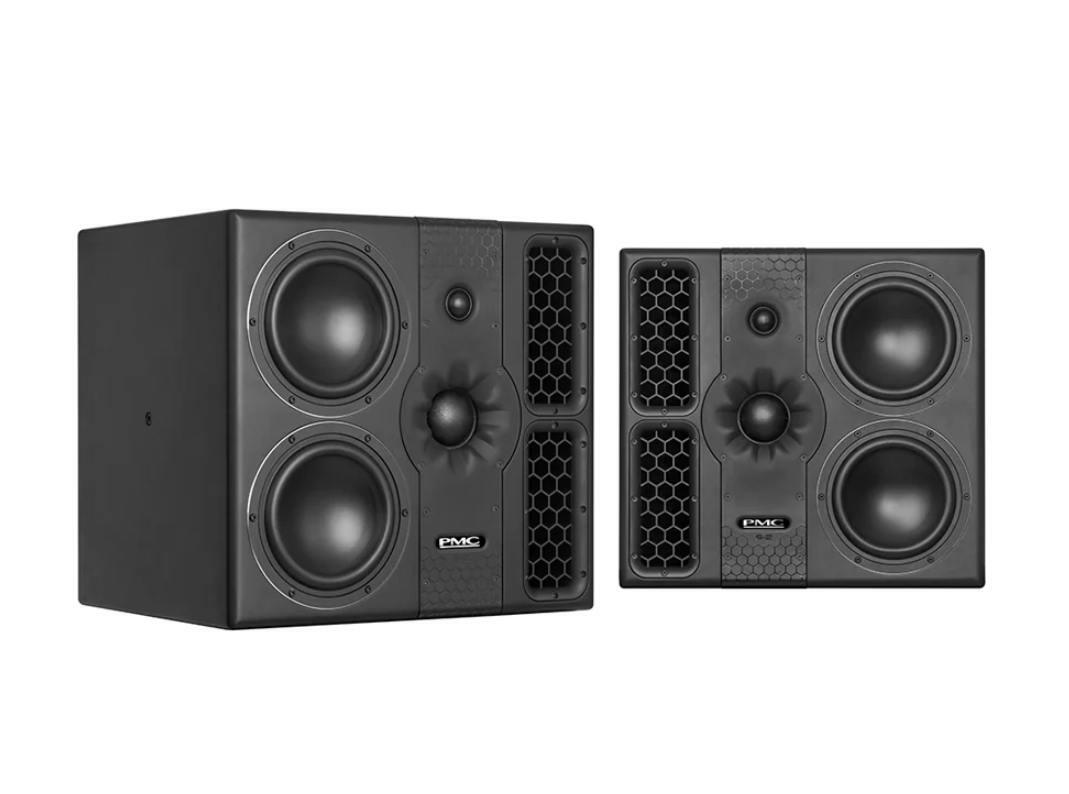

This 3-way active monitor speaker combines two custom 6-inch ultra-long-throw bass-drivers with our radically engineered PMC55 2-inch soft-dome mid-range unit and a precision-built one-inch soft-dome tweeter. The PMC55’s distinctive ‘N-compass’ waveguide enhances the wide dispersion and remarkable mid-range projection of the driver; in combination with the high performance of the tweeter, the result is an ultra-wide and stable image, with a smooth and natural in-room response. Each bass driver is individually powered by a cutting-edge 400W Class-D amplifier and seamlessly integrated by our sophisticated, highly accurate DSP-based crossovers. As with the PMC6, the monitor is configured using rear-panel controls or the browser-based SoundAlign™ software, with comprehensive boundary and EQ options.
The PMC6-2 offers astonishing size-to-performance ratio thanks to its ATL™ bass-loading technology, which results in exceptional LF extension and consistent tonal balance at all listening levels. Our Laminair™ airflow technology, visible in the monitor’s hexagonal vent ducts, further reduces colouration and enhances dynamics and efficiency.
A simple upgrade path converts the PMC6-2 to a full-range XBD system; just add a PMC8.2 SUB and select XBD mode to perfectly dovetail the two units, extending the response down to 25Hz with additional headroom.
- Active 3-way nearfield reference monitor with ATL™ bass loading
- Frequency response: 33Hz - 25kHz (- 3dB @1m full space, on-axis)
- Max. cont. SPL: 109dB @1m (Half space value calculated as +3dB from full space measurement.
- Un-weighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
- State-of-the-art Class-D amplifiers: HF 400W, MF 400W, LF 2x 400W
- Analogue / AES3 digital input (16/24-bit, 18 -192kHz sample rate)
- Digital ‘through’ output (AES3 24-bit 96kHz)
- SoundAlign™ network control interface for single or group EQ & settings
- Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
- PMC6-2 + PMC8-2 SUB = PMC6-2 XBD, with LF down to 25Hz & increased headroom
- Ceiling-mount yoke allows suspension in multi-channel or immersive systems
Specifications
- Type: Active 3-way nearfield reference monitor with ATL™ bass loading
- Drive Unit Complement:
- LF 2 x PMC 150mm (6”) studio 6 drivers
- MF PMC 55mm (2”) soft dome mid-range
- HF PMC 27mm (1”) soft dome tweeter
- Effective ATL™ Length2m (6.6ft)
- Frequency Response: 33Hz - 25kHz (- 3dB) (@1m full space, on-axis)
- Sensitivity: +4dBu input signal = 98dB SPL @ 1m
- Max continuous SPL109dB @1m (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
- Max Peak SPL121dB @1m (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
- Directivity:
- H +/-50 degrees
- V +60/-40 degrees (-6dB off axis @10kHz)

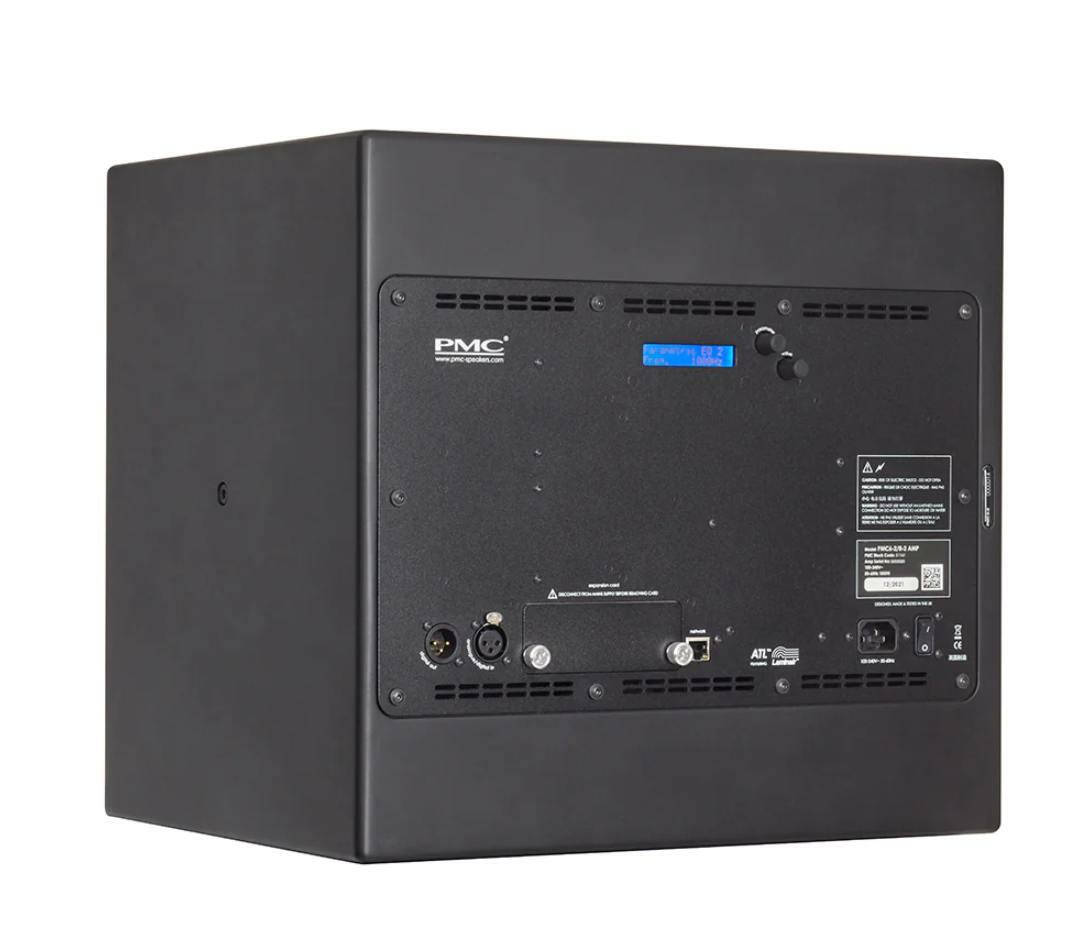

- Input: XLR switchable between analogue & digital AES3
- Analogue input
- +20/+24dBu max. input level (selectable)
- 22K ohm input impedance
- Digital input
- 16/24-bit AES3 signal, left, right or left + right
- 18 - 192kHz Sample Rate
- 110 ohm input impedance
- Expansion card slot For future connectivity upgrades
- Output: XLR digital AES3 (fixed 24-bit @ 96kHz)
- Network: RJ45 for use with PMC SoundAlign web interface
- Features:
- Level Trim (+/-10dB)
- High-pass filter (20 - 200Hz, 12dB/Oct)
- Delay (0 - 30mS)
- Phase (normal or inverted)
- LF & HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707)
- Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB)
- User presets (3 + factory defaults)
- Latency: 2.4mS
- Amplifier power per channel:
- LF 2 x 400Wrms
- MF 1 x 400Wrms
- HF 1 x 400Wrms
- Mains: 100 - 240VAC auto-switching, 50-60Hz (IEC C14)
- Power consumption (idle): 50W
- Power consumption (max): 1500W
- Cabinet dimensions:
- H 400mm (15.7”)
- W 430mm (16.9”)
- D 372mm (14.6”)
- Weight21.3kg (47lbs) each
- Available Finishes:Studio black
