Elysia Alpha Mastering Compressor
Auf Bestellung

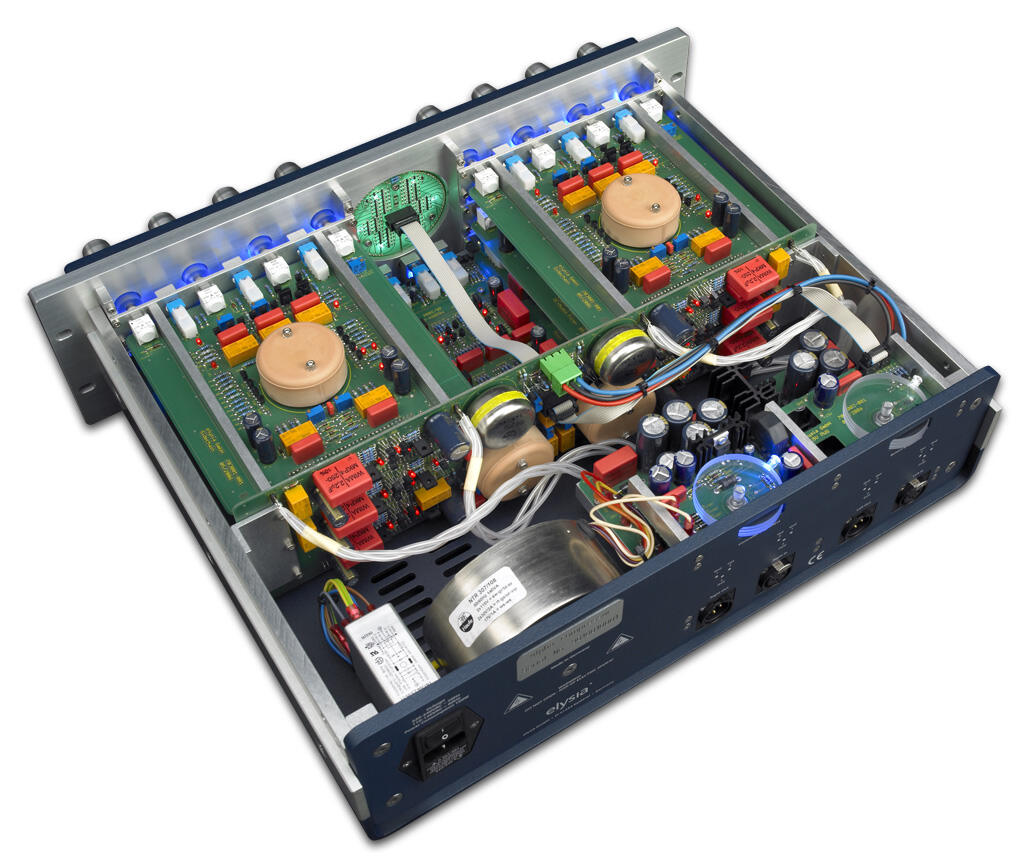

Die Schaltungstechnik wurde komplett neu entwickelt, um eine Offenheit des Signals zu gewährleisten, welche mit bisherigen Geräten kaum erreichbar ist. Die komplette Signalverarbeitung ist mit einzelnen Transistoren in ständigem Class-A Betrieb aufgebaut, und selbst Sidechain und Netzteil bestehen aus diskret ausgeführten Schaltungen.
Sämtliche Bauteile sind von höchster Güte und speziell nach klanglichen Kriterien ausgesucht worden.Die dadurch erzielte Signalqualität ist über jeden Zweifel erhaben; selbst bei extremen Einstellungen bleibt das Klangbild immer sauber und druckvoll. Somit bietet der alpha compressor passende Einstellungen für nahezu jeden Musikstil und lässt sich immer gewinnbringend einsetzen.
Die erweiterten Funktionen gehen weit über das Potenzial eines normalen Kompressors hinaus und eröffnen ungeahnte Möglichkeiten für sämtliche Mastering- und Recording-Anwendungen.
100% Discrete Class-A
The alpha compressor represents the art of discrete signal processing consequently. ICs have to stay out without any ifs and buts.
Integrated M/S
Matrix As an alternative to standard stereo operation you can process the mid and side signals, opening up completely new options for your work!
Feed Forward & Feedback
The type of compression can be chosen for each channel individually, making two different compressors available at the push of a button.
Auto Fast
A switchable semi automation that always provides perfect attack and release on the basis of the values set by the user – even with complex material. Learn more Audio Filter The Niveau Filter is specialized in forming the tonal characteristics of a track very effectively without much of an effort.
Sidechain Filter
The alpha compressor features on-board frequency selective compression. This avoids complex routings in favor of an effective workflow.
Parallel Compression
Also available directly on the unit: the direct and the compressed signal can be blended in any desired relation by simply turning the mix controller.
Signal Matrix
The direct and the processed signal can be monitored individually or together by the push of a button in each channel (left & right or mid & side).
Soft Clip Limiter
Tames short and loud transients and smoothens the signal peaks, and thereby protects following AD converters from clipping.
Switchable Transformers
The sound of iron: yes or no? Both! The alpha compressor makes this option switchable, so you can decide for each track individually.
Analog Dynamic LED Meter
The gain reduction meter modulates its LEDs in their brightness in order to show the compressor’s action in an analog way: fast and with smooth transitions.
Passive Current Attenuator
The alpha's custom discrete gain reduction cell provides extreme speed, enormous bandwidth and superior sound.
T16 Heater
This system keeps sensitive parts of the discrete circuitry at a stable temperature and thus protects them against parameter aberrations.
VOVOX Sound Conductors
The internal audio cabling is also no place for compromise. By the use of VOVOX solid core the sound remains vivid, dynamic and punchy.
Technical Data
Frequenzumfang: | <10 Hz - 200 kHz (-0,5 dB) |
THD+N
@ +15 dBu, 20 Hz - 22 kHz: Stereo-Modus (Direct) Stereo-Modus (Compressed) M/S-Modus (Direct) M/S-Modus (Compressed) |
0,0039 % 0,009 % 0,014 % 0,034 % |
Rauschen,
20 Hz - 20 kHz (A-bewertet): Stereo-Modus (Direct) Stereo-Modus (Compressed) M/S-Modus (Direct) M/S-Modus (Compressed) |
-95,8 dBu -89,3 dBu -95,6 dBu -92,3 dBu |
Dynamikumfang,
20 Hz - 22 kHz: Stereo-Modus M/S-Modus |
122 dB 118 dB |
Maximaler
Eingangspegel: Stereo-Modus M/S-Modus |
+28 dBu +23 dBu |
Maximaler
Ausgangspegel: Stereo-Modus M/S-Modus |
+27 dBu +28 dBu |
Impedanz: Eingang Ausgang |
10 kOhm 68 Ohm |
-
