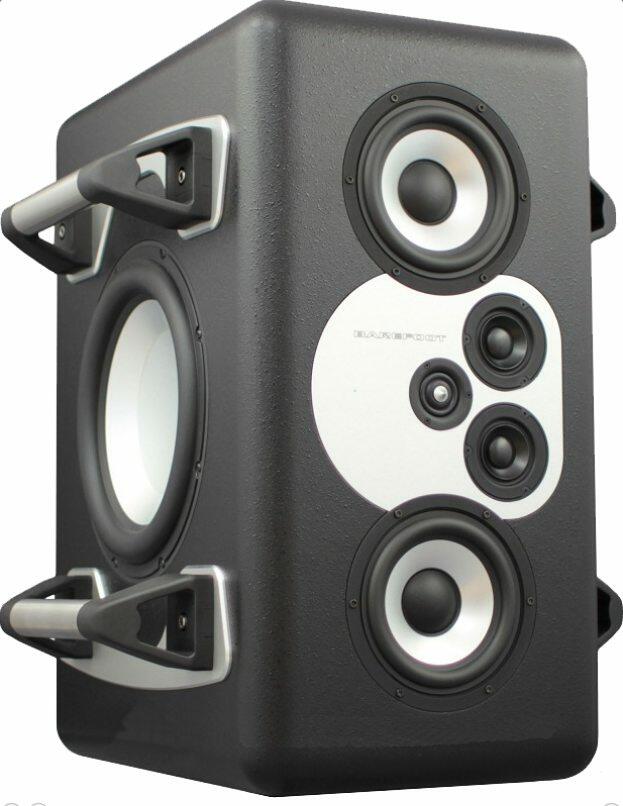

Barefoot Sound MM12 - The MiniMain 12, Paar

Artikelnummer 2013122211

Kategorie Lautsprecher & Zubehör

Griffe

31.395,00 €

inkl. 19% USt. ,

Auf Bestellung

Lieferzeit ca.: ca. 3 Wochen (DE - Ausland abweichend)

Beschreibung

Aktiver 4-Wege Monitor mit integetriertem 12-Zoll Subwoofer

Bitte beachten, diese Lautsprecher sind mit oder ohne Griffe erhältlich. Der angezeigte Preis gilt für die Version ohne Griffe, unter optionen können Sie Griffe dazuwählen. Danke!

Barefoot Sound is proud to introduce the revolutionary new MiniMain12, possibly the most accurate, revealing and technologically advanced recording monitor ever made. This is a bold statement, but the MiniMain12 is an incredibly bold speaker. With vanishing low distortion, breathtakingly wide dynamic range, ultra-fast transient response plus our amazing MEME™(Multi Emphasis Monitor Emulation™) technology.

The MiniMain12 is a 4-way active system with 7 drive units housed in sealed enclosures spanning 20Hz to 40kHz with vanishingly low distortion, breathtaking dynamic range and ultra-fast transient response. Every driver has an under-hung voice coil moving inside an advanced geometry motor that enables it make extremely long linear excursions. The ring radiator tweeter is incredibly detailed and produces very wide dispersion out to its highest frequencies. The aluminum cone subwoofers, woofers and midranges radiate as perfect pistons to at least 2.5 octaves beyond their respective bandwidths. Barefoot has teamed up with the brilliant Bruno Putzeys of Hypex to develop the powerful and completely transparent amplifier stage of the MM12. Melding the system together is a groundbreaking DSP crossover that has taken Thomas Barefoot more than 4 years to develop. With beautifully designed high end converts and cutting edge proprietary filtering techniques the MiniMain12 produces such a seamless and coherent wavefront that, if you dare, you can actually listen to this speaker from less than 3 feet away with no sonic compromise. And yes, the MM12 works perfectly out to far field distances as well, producing SPLs equivalent to big mains.

If all this weren't enough, the MiniMain12 brings yet another revolutionary feature into the mix - MEME(TM) Multi Emphasis Monitor Emulation (TM) technology. While no other monitor in the world can match the MM12's linearity and transparency, the MM12 actually has the capability to emulate other speakers! Despite the advantages of high resolution monitors, Thomas Barefoot realizes that many engineers still use their NS10M's and mix cubes as secondary references. These speakers have long traditions and people find them familiar and useful for focusing in on certain aspects of their mix. However, crowding one's console with those extra boxes degrades the sound field of the primary reference monitors. Not to mention, they are no longer manufactured, they need amplifiers, cable runs, and they consume more studio space. So why not make the MM12 sound and translate like those speakers as well? With the turn of a knob one can switch from the MiniMain12's brutally revealing "Flat" response to the warmer and sweeter "Hi-Fi" setting, generically emulating the sound of some high end consumer audio gear. More specifically the "Old School" setting closely emulates the sound of the NS10M nearfield, while the "Cube" setting emulates the mid-centric sound of classic mix cubes The idea is not to perfectly replicate every subtle quirk of these venerable old speakers. That would be impossible. But the MiniMain12 can capture the essence of how they behave and translate, modeling their frequency, phase and transient responses, dynamic compression and even some of their distortion components. If you know how to work on these speaker you will feel very comfortable working on the MM12's emulation settings.

So there you have it: The Barefoot Sound MiniMain12, a monitor like no other.

Features:

Input impedance: 50k ohms
Frequency response: 20Hz - 40kHz (+/- 3 dB ); 24Hz - 30kHz (+/- 1 dB )
Input sensitivity: 88 dB @ 1m (-15dBV input; 24Hz - 30kHz nominal)
Bass response
- -3 dB @ 20Hz
- Q = 0.707
- Slope: 12 dB/octave
Cabinet
- Total internal volume: 82 liters
- Sealed sub enclosure
- Individual sealed midbass and woofer enclosures
- Machined aluminum baffle plate
- Aluminum subwoofer frames function as lateral cabinet bracing
Crossover frequencies: 80/800/4000Hz
Tweeter
- 1" ring radiator
- Advanced neodymium motor
- Rear waveguide chamber
- Amplifier power: 250 W
Dual midranges
- 2.5" aluminum cones
- Advanced neodymium motor
- Sealed chamber
- Amplifier power: 250 W
Dual woofers
- 7" aluminum cones
- Advanced motor
- Sealed chamber
- +/- 9.5 mm linear excursion
- Amplifier power: 250 W
Dual subwoofers
- 12" aluminum cones
- Advanced neodymium motor
- Sealed chamber +/- 25 mm linear excursion
- Amplifier power: 1200 W
Power consumption
- Idle: 50W
- Maximum: 1500W
Weight: 135 lbs each (61 kg)
Dimensions: 26 x 13.5 x 20 inches (660 x 343 x 508 mm)
