Final piece to the puzzle…

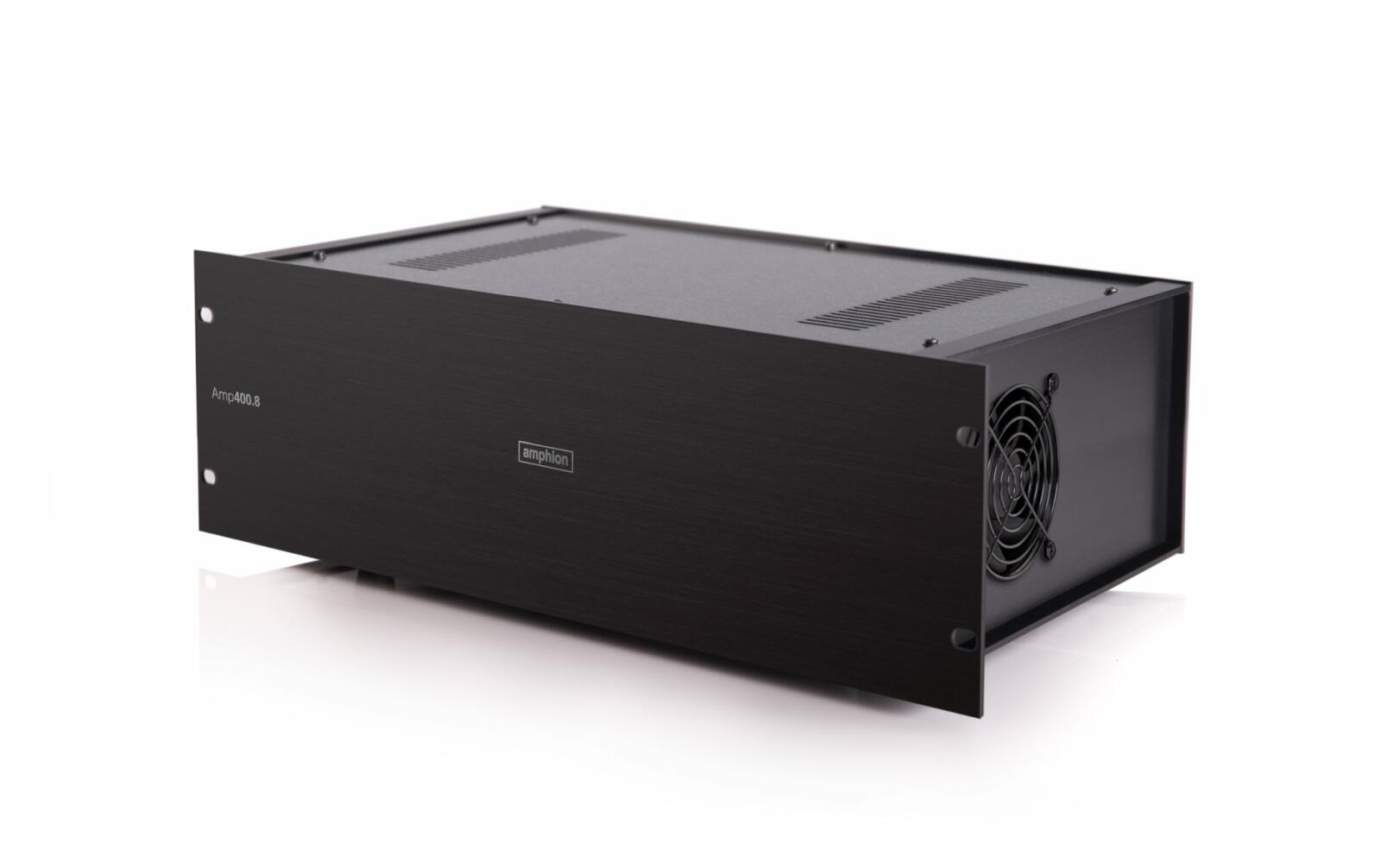

The Amp400.8 provides an exceptional level of multichannel amplification. It is built on the highly advanced Class-D platform, which offers abundant, fast, controlled, and low distortion power. To reach the needed sonic character and performance, an in-house designed buffer-stage was added to complement the merits of the latest Class-D technology. The buffer stage improves the impedance characteristics and cohesion between the channels, so that speed, control, neutrality, and ultra-low distortion can come across in an emotionally involving manner.
Though Amp400.8 was mainly developed for immersive audio, nothing prevents using it for other multichannel applications as well. As all 8 channels are identical and discreet it can also also be used in a 2-channel environment for driving up to 4 pairs of passive speakers. It will equally drive both 8 ohm and 4 ohm loads, and partners perfectly with all Amphion models. Though Amp400.8 was developed and optimized for Amphion monitors, it provides excellent results with wide range of passive speakers. Neutrik XLR and Speakon connectors offer a convenient and secure way to connect the amplifier to rest of the system.
Features:
410W per channel for abundant, fast, controlled, and low distortion power for multichannel applications.
In-house designed buffer-stage improves sonics and complements the merits of the latest Class-D technology.
A perfect partner for all Amphion models and other passive monitors.
Power rating
@1%THD+N, 20Hz–20kHz 410W ( 4 ohm) / 205 W (8 ohm)
Dynamic range
121.5 dB(A)
Peak output current
20A
Mains
Universal mains, auto select (100-240 V, 50-60 Hz)

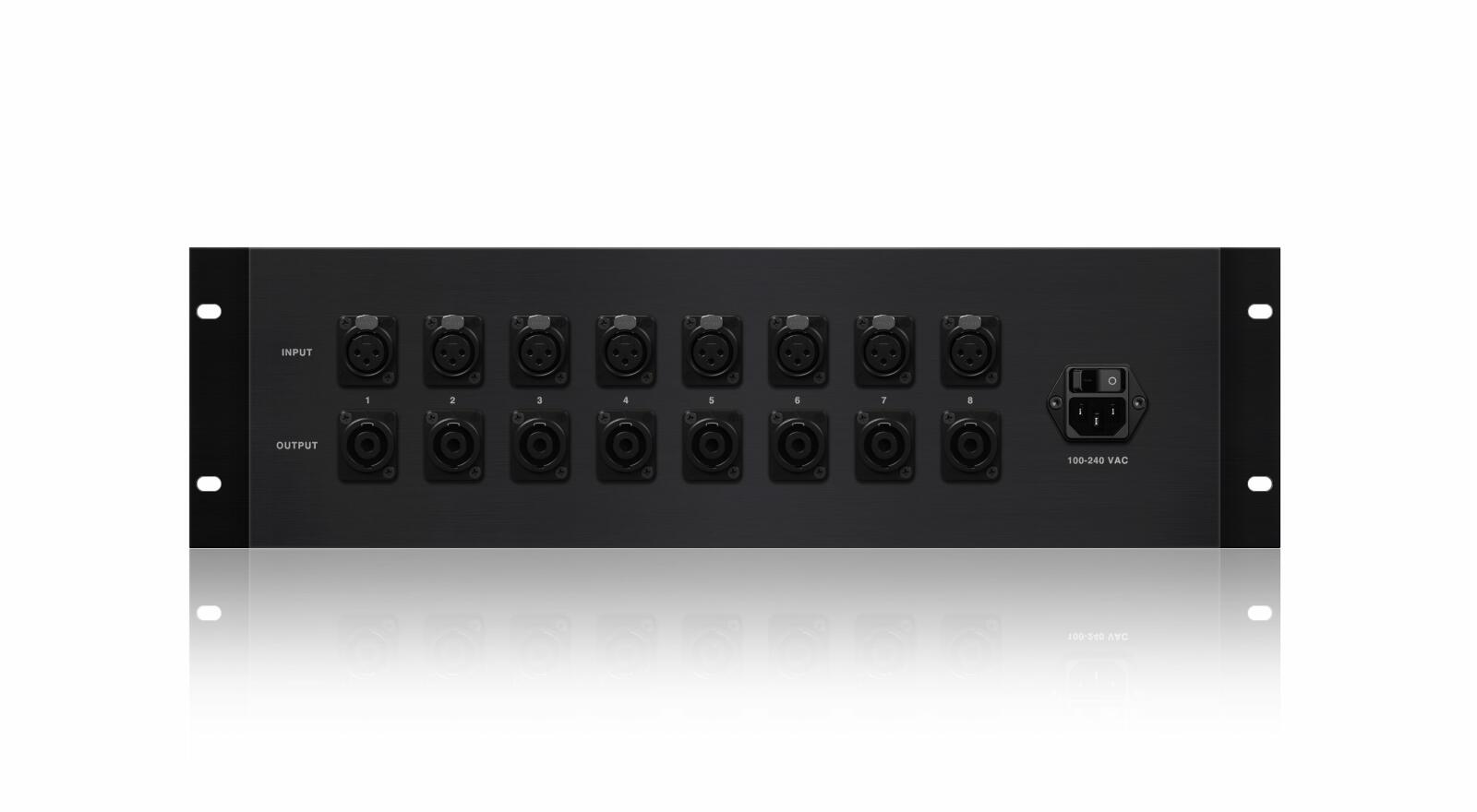

Inputs
Balanced 3-pin XLR female
Speaker connectors
Neutrik Speakon (NL2FX) 2-pole cable

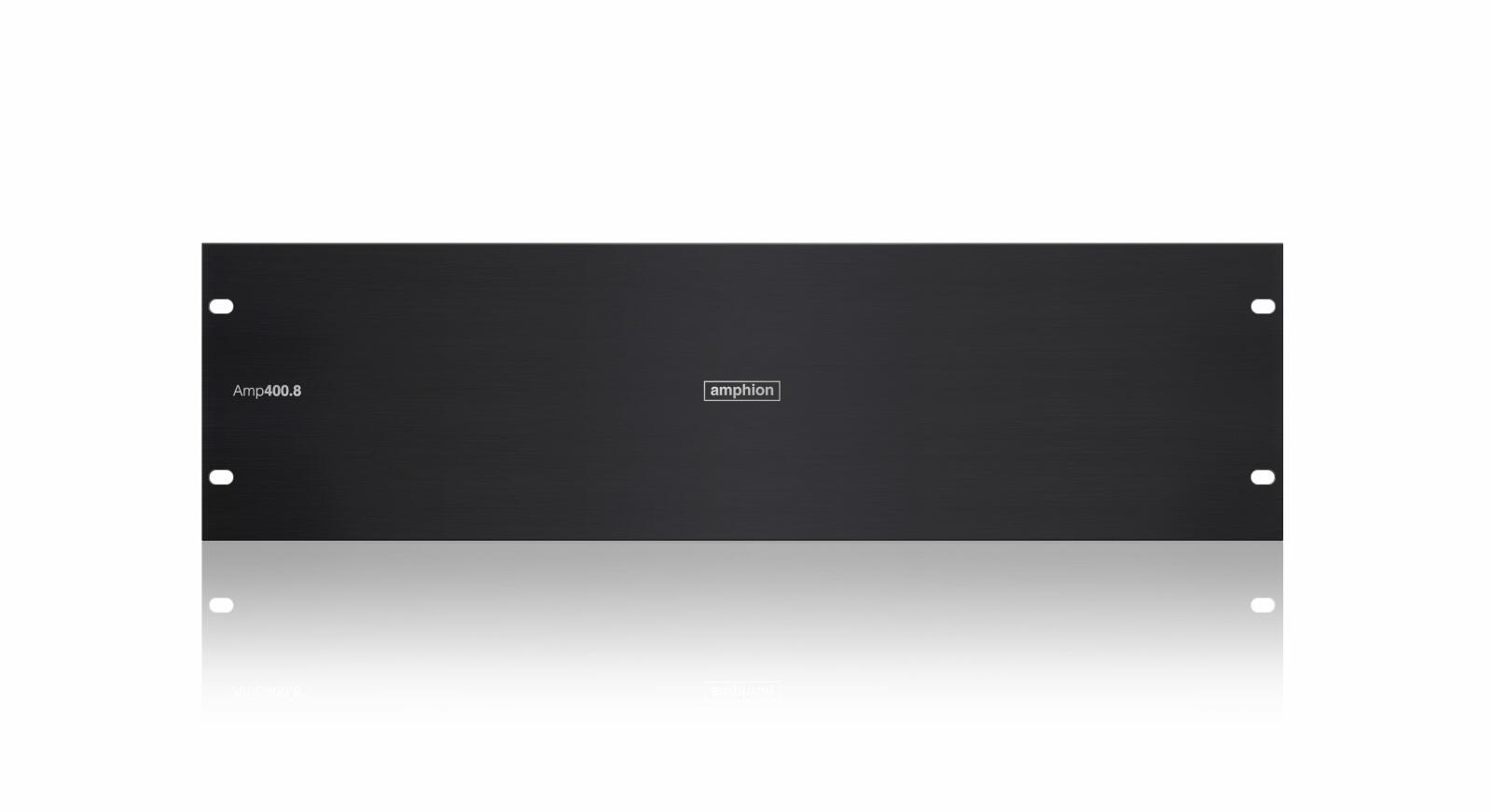

Casing
19” rack mountable (3U), high quality aluminium
Weight
7.2 kg (16 lbs)
Certification
Safety EN/IEC/UL 62368-1 EMC EN/IEC 55032 (CISPR 32)
